| Shock Specs | Compressed | Extended | Mounting |
| MRA59-A578 (No Spacer) | 416 mm (16.3") | 619mm (24.3") | 1.5" / 1/2" Bolt |
| MRA59-A578 (10mm Spacer) | 426 mm (16.7") | 629mm (24.7") | 1.5" / 1/2" Bolt |
| MRA59-A578 (10 6mm Spacer) | 432 mm (17") | 635mm (25") | 1.5" / 1/2" Bolt |
- TO BE USED WITH LONG TRAVEL KITS ONLY, DOES NOT SUIT OE STYLE UPPER AND LOWER CONTROL ARMS.
- SUGGESTED COIL SPRINGS
- C92-3016550 Specs
- Inner Diameter - 3.0"
- Length - 16"
- Spring Rate - 550lb/in
- C92-3016600 Specs
- Inner Diameter - 3.0"
- Length - 16"
- Spring Rate - 600lb/in
- C92-3016650 Specs
- Inner Diameter - 3.0"
- Length - 16"
- Spring Rate - 650lb/in
- C92-3016550 Specs
- Length & Height Trim Spacers 6mm and 10mm included.
- Multiple bolt patterns to suit older 1st Gen Tacoma, 3rd Gen 4Runner as well as newer 4Runner,Tacoma, Prado, FJ Cruiser & Hilux.
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminium Race Piston
- 66mm / 2.6" Bodies
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to /- 0.04mm
- Upgraded 3 Stage FKM/HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances

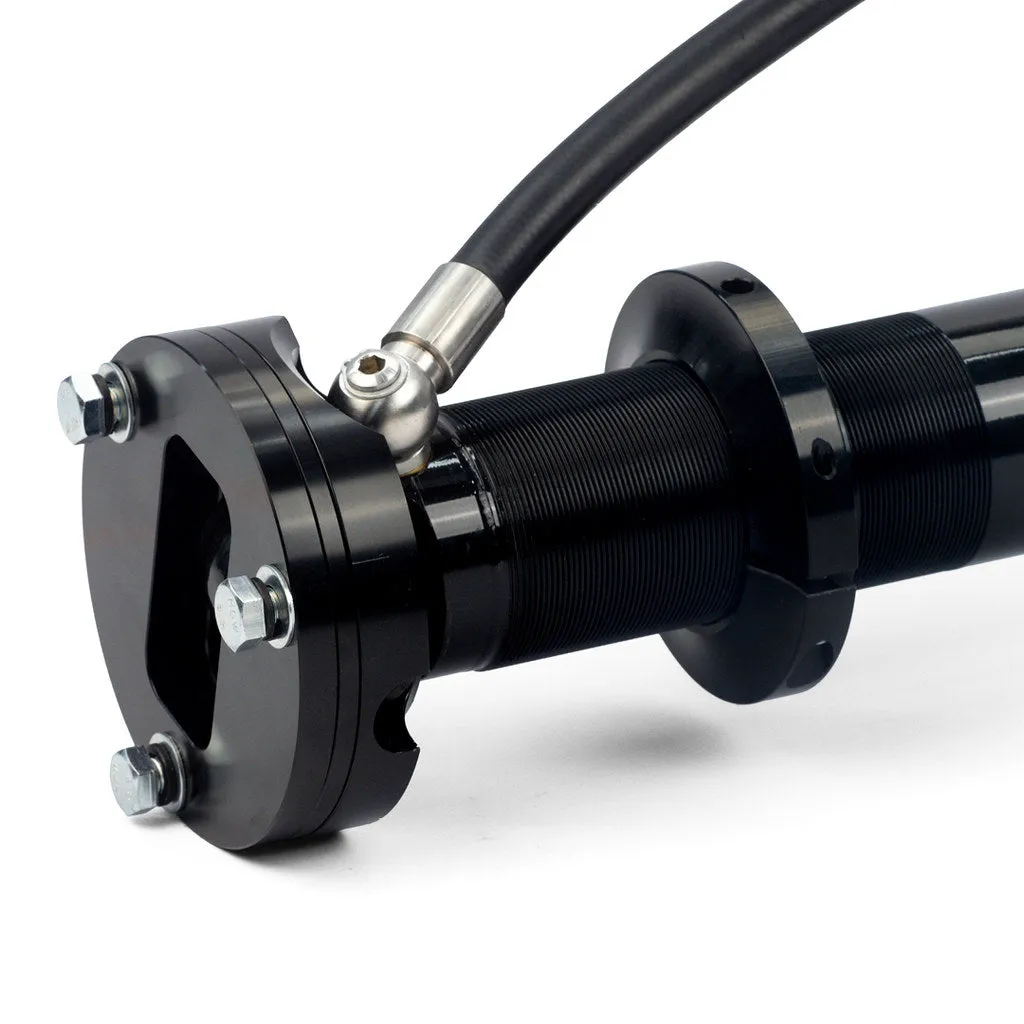

- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low wear performance

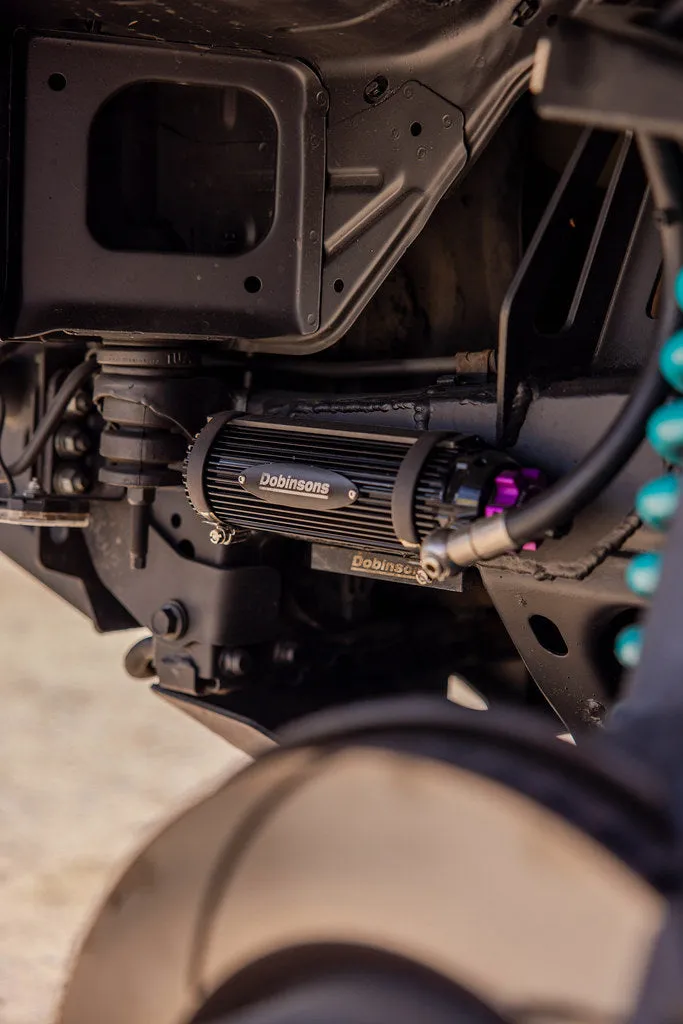

- 60mm Full 6063 aluminum finned remote reservoir
- Lightweight CNC Machined Low Friction floating piston

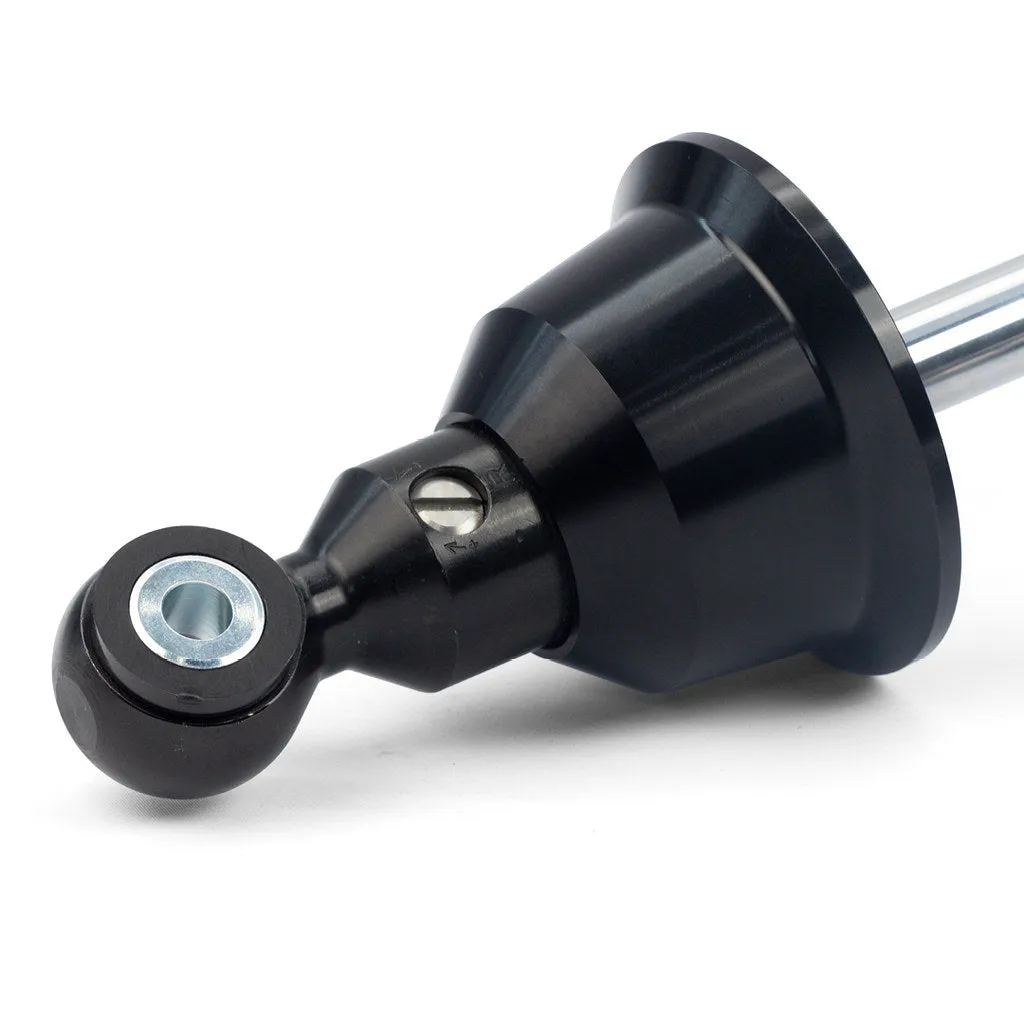

- High Quality Spherical Bearings
- EDP Surface Protection
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
