Features
- Compact and sturdy structure fully made of welded steel.
- Shafts made of specially treated and chromium-plated steel.
- Spring made of steel inside the cylinder for a rapid return of the shaft.
- Two-speed manual pump: fast when approaching and precise when working.
- Knob on the pump to control both speeds.
- Winch to raise easily and quickly the workbench.
- Supplied with a large diameter manometer.

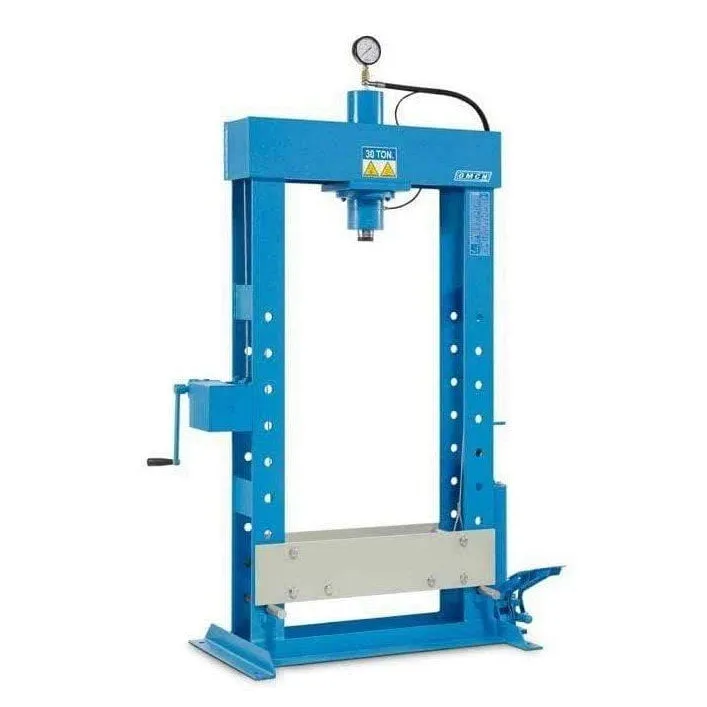

P30/SA 30T
- Loading weight of 30000 Kg

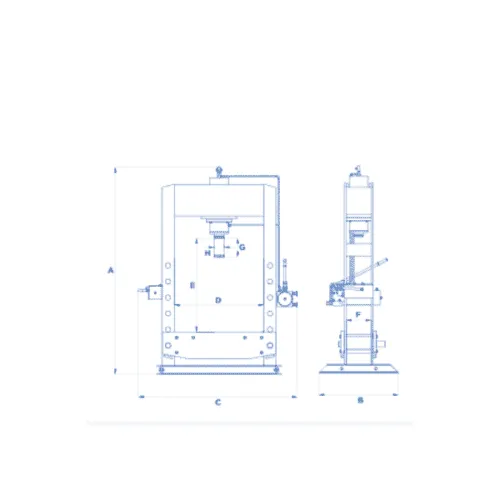

- A(mm) 2180
- B(mm) 600
- C(mm) 1300
- D(mm) 695
- E(mm) 1000
- F(mm) 170
- G(mm) 190
- H(mm) 60

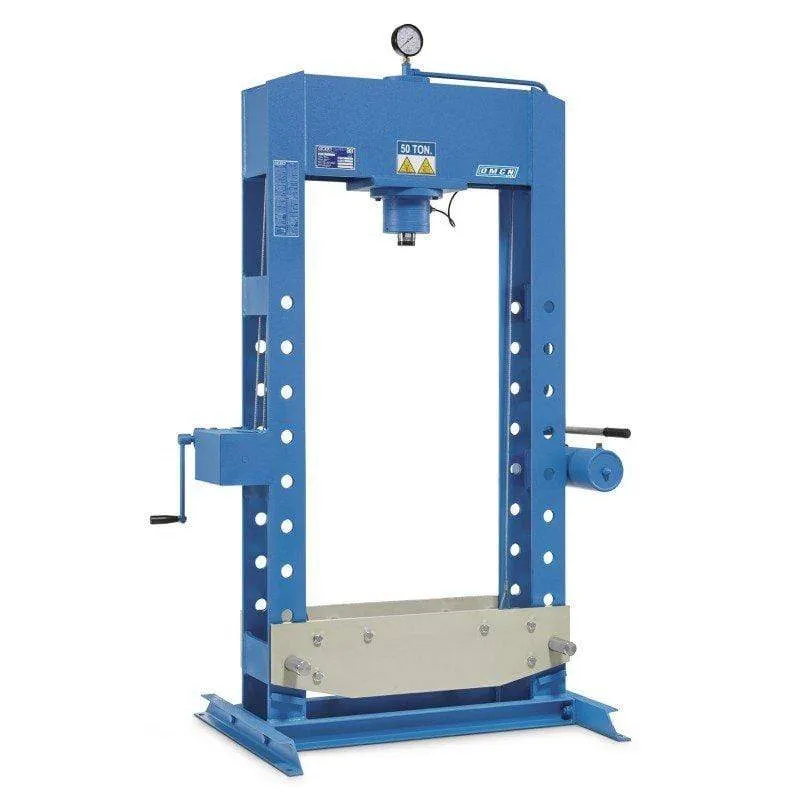

158 50T
- Loading weight of 50000 Kg
- A(mm) 2260
- B(mm) 850
- C(mm) 1420
- D(mm) 770
- E(mm) 1135
- F(mm) 210
- G(mm) 190
- H(mm) 60
160 100T
- Loading weight of 100000 Kg
- A(mm) 2440
- B(mm) 900
- C(mm) 1740
- D(mm) 1010
- E(mm) 1055
- F(mm) 285
- G(mm) 215
- H(mm) 110
