Description

STC-HA50 Auto-Adjust Toggle Clamp with Auto-Adjust technology offers an adjustable range of clamping pressures between 25 to 550 lbs* Durable construction with a holding capacity of 700 lbs. Allows for fast setups and consistent clamping pressure.

*Variable and dependent on spindle and pressure screw setting.

FEATURES

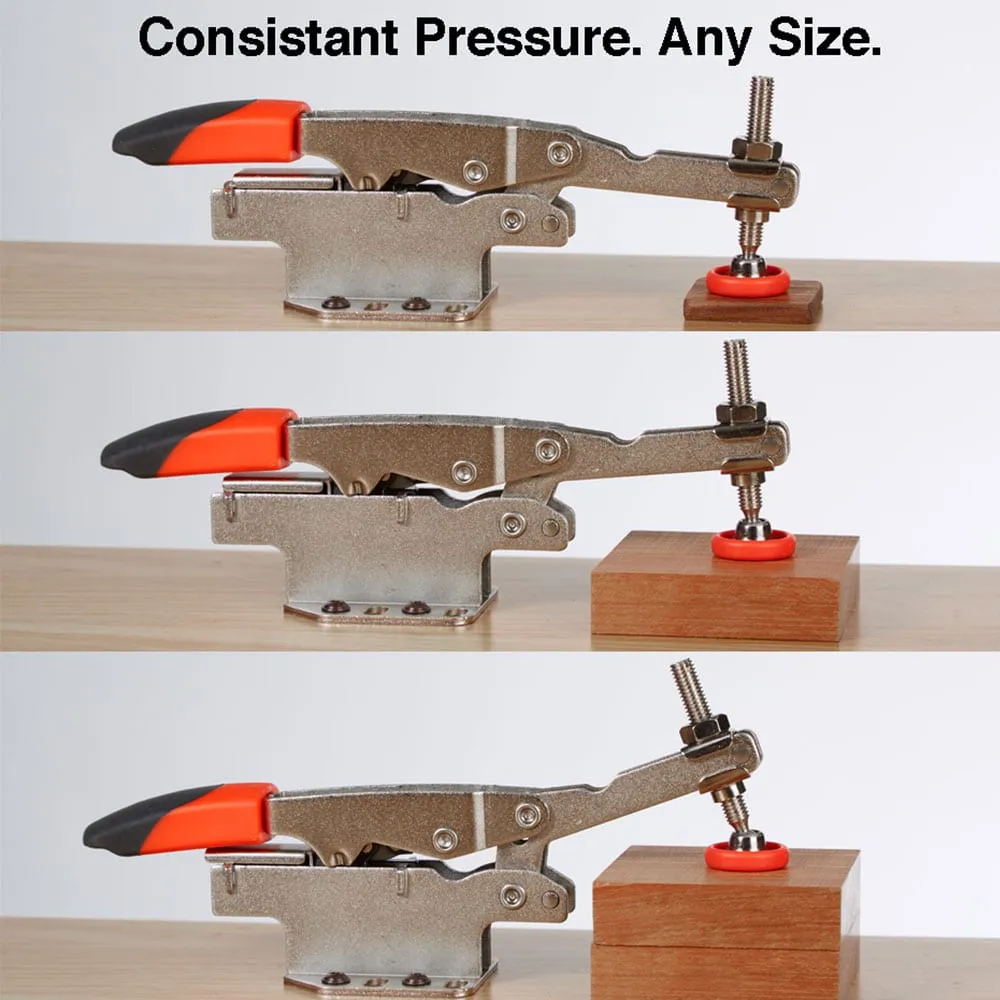

Auto-Adjust: Armor’s Auto-Adjust technology automatically adjusts to variations in workpiece dimensions while maintaining consistent clamping pressure.

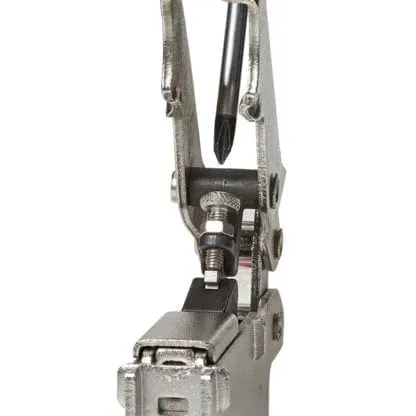

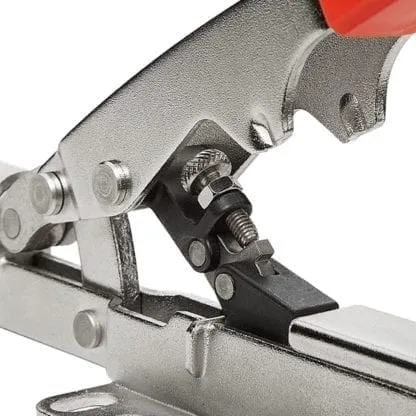

Adjustable Clamping Pressure: The integrated clamping pressure adjustment screw is used to create a wide range of clamping pressures. Rotate the adjustment screw clockwise to decrease the pressure and counterclockwise to increase it.

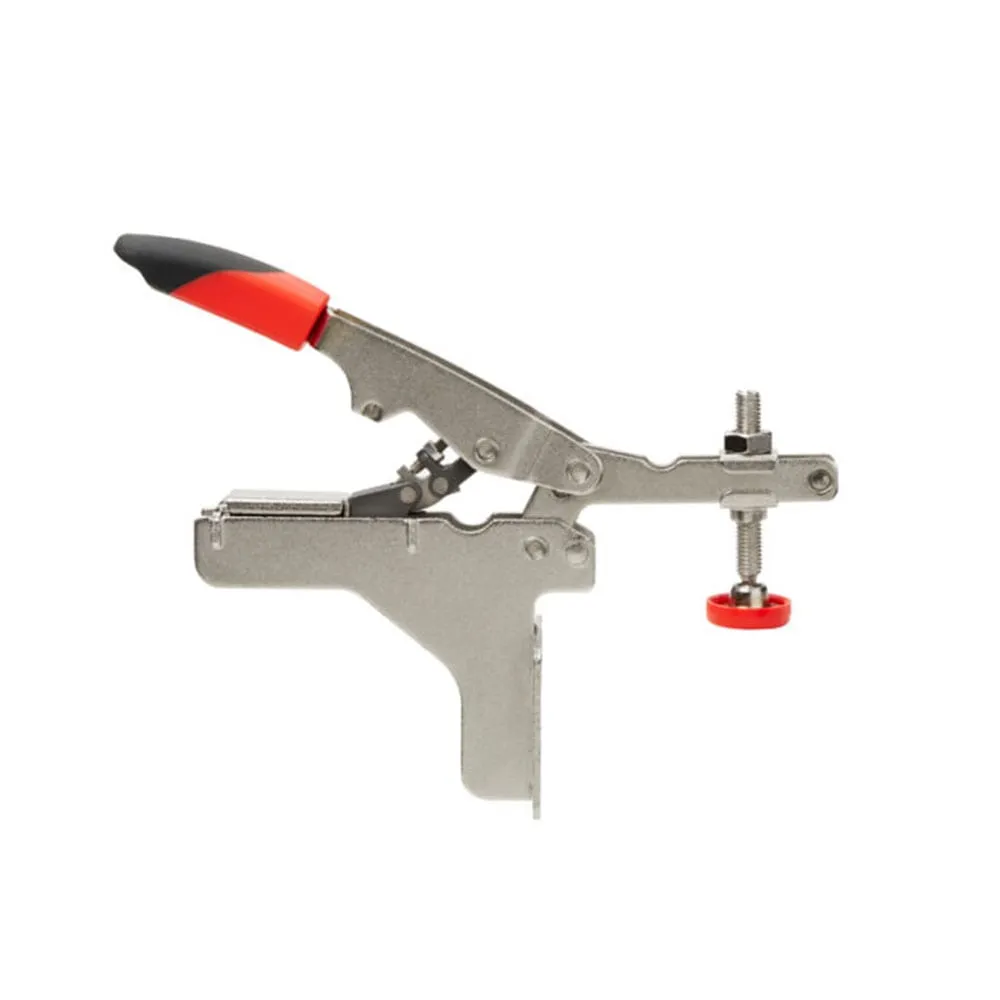

Angled Base Plate: Angled plate features adjustable mounting holes on the base plate to accommodate most standard toggle mounting patterns.
Large Soft-Grip Handle: For maximum grip and comfort.

Use product only as intended. Modification or use in conjunction with another product or bracket for resale is prohibited. Please contact Armor with any integration resale applications.

Warning: For your protection ALWAYS wear safety goggles, gloves and other appropriate safety equipment.

SPECIFICATIONS

Model No: STC-HA50
Opening: 1-9/16″
Adjustable Clamping Force: 25 to 550 lbs.
Holding Capacity: 700 lbs.
Approx. Weight: 1.2 lbs.
Fastener: 1/4″ or M6
